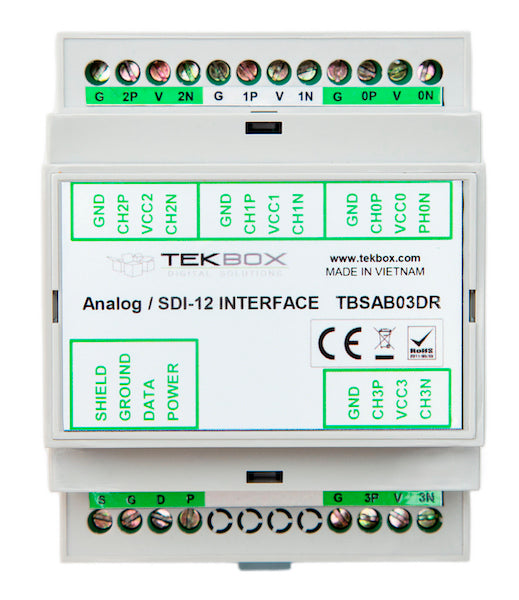

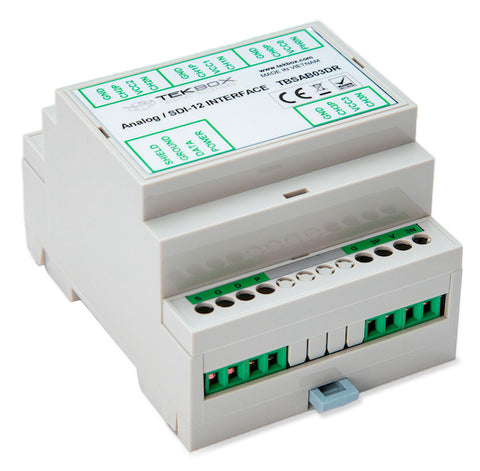

24 Bit Differential Analog to SDI-12 Interface Din Rail TBSAB03-DR

The TBSAB03-DR is a 4 differential channel analog to SDI-12 interface for 24 Bit A/D conversion of sensor signals. A/D conversion and configuration is controlled via SDI-12 commands. The interface is equipped with signal conditioning circuits which can be customized for various input voltage ranges. It offers low current consumption and comes in a Dinrail housing.

Each channel can be independently scaled with a 3 rd order polynomial to enable gain and offset calibration of the connected sensors.

The TBSAB03-DR provides digital signals for the power management of the connected sensors. Four onboard, SDI-12 controlled high side FET- switches are provided to power on/off connected sensors.

Specifications

• Differential analog to SDI-12 interface
• 4 24 Bit Sigma Delta ADC channels
• 4 analog differential inputs; configurable as 4-20mA current loop or 0-2,5V voltage inputs; other voltage ranges upon order
• Input over-voltage protection
• Configurable 12V warm up and power-off time for each channel
• Accuracy: 1mV over 1mV-2.5V range
• ±0,025%, 2ppm/°C reference voltage
• Chopper stabilized buffer for low offset
• 50Hz & 60Hz line rejection filter
• SDI - 12 standard V1.4
• Plug and play
• 6 - 16V supply voltage
• 80 mm x 120 mm x 57mm
• Dinrail housing
• Operating temperature range: - 40°C … + 85°C

Documentation downloads:

TBSAB03 User Manual
