SDI-12 / RS232 Converter TBS06


SDI-12 / RS232 Converter TBS06

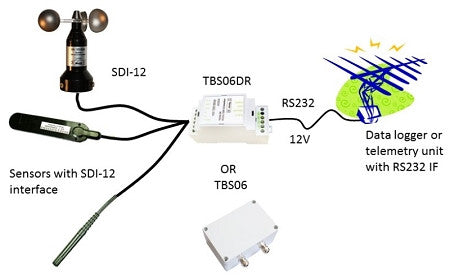

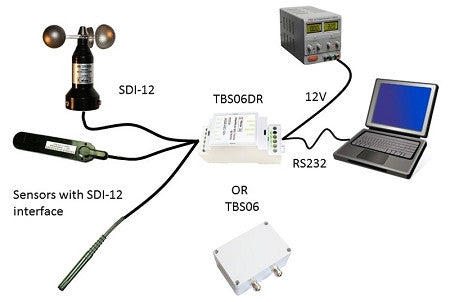

The TBS06 RS232 to SDI-12 Converter is an Interface Box for connecting a PC, data logger or RTU to one or more sensors with SDI-12 interface. The TBS06 connects to the RS232 interface and provides a SDI-12 compliant data interface. The TBS06 is a versatile tool for everyone who designs sensors and data recorders or who installs, tests or maintains SDI-12 based data acquisition systems.
It is available in a IP67 housing or optionally as assembled PCB without housing.

  • RS232 to SDI-12 Interface
  • Transfer Mode
  • Plug and play
  • No driver required
  • Selectable data rate: 4800 - 38400 Baud
  • 5V … 12V supply voltage
  • Low power mode
  • Spring loaded terminal blocks
  • IP67 housing
  • Operating Temperature Range: - 40°C … + 85°C
Target Application
  • SDI-12 Data Recording
  • SDI-12 Field Installations
  • SDI-12 Interface Debugging
  • SDI-12 Sensor Testing
Documentation downloads:

SDI-12/RS232 Converter Flyer
SDI-12/RS232 Converter Manual

SDI-12 Commander 2.0 serial terminal program for Windows 32/64
