SDI-12 / RS485 Converter TBS07

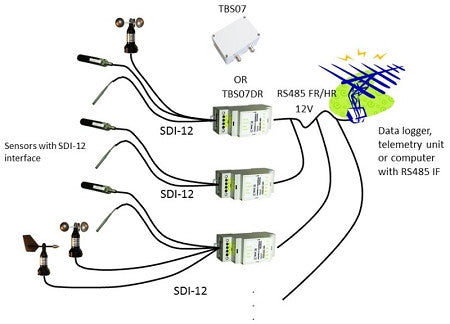

The TBS07 RS485 to SDI-12 Converter is an interface box for connecting a PC, data logger or telemetry unit to one or more sensors with SDI-12 interface. The TBS07 connects to a data logger, telemetry unit or other device with RS485 interface and provides a SDI-12 compliant sensor interface. The TBS07 DR is a versatile tool for everyone who integrates sensors and data recorders or who installs, tests or maintains SDI-12 based data acquisition systems.

Features

• RS485 to SDI-12 Interface
• Transfer Mode
• Plug and play
• No driver required
• Baud Rate: 38400, 19200, 9600,4800 Baud, user configurable
• 6V … 15V supply voltage
• Low power mode
• Screw terminal blocks

• Din Rail housing
• Operating Temperature Range: - 40°C … + 85°C

Target Application

• SDI-12 Data Recording
• SDI-12 Field Installations
• SDI-12 Interface Debugging
• SDI-12 Sensor Testing

Documentation downloads:

SDI-12/RS485 Converter Manual

SDI-12 Commander 2.0 serial terminal program for Windows 32/64
