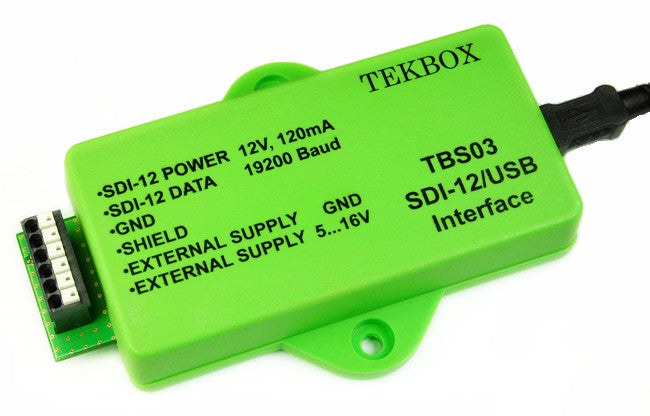

SDI-12 / USB Converter, Transfer Mode only TBS03


SDI-12 / USB Converter, Transfer Mode only TBS03


The TBS03 SDI-12 to USB Converter is an Interface for connecting a PC to one or more sensors with SDI-12 interface. TBS03 connects to the USB interface and provides SDI-12 compliant supply and data interface. TBS03 is a versatile tool for everyone who designs sensors and data recorders or who installs, tests or maintains SDI-12 based data acquisition systems.

  • SDI-12 to USB Interface
  • Transparent Mode
  • SDI-12 Standard V1.3
  • Data rate: 19200 Baud
  • Simple Driver Installation
  • USB powered
  • Provides 12V, 120mA sensor supply voltage
  • Auxiliary power supply interface for higher current requirements
  • Spring loaded terminal block
  • Mini-USB-B connector
  • Operating Temperature Range: - 40°C … + 85°C
Target Application
  • SDI-12 Data Recording
  • SDI-12 Field Installations
  • SDI-12 Interface Debugging
  • SDI-12 Sensor Testing
Documentation downloads:

SDI-12/USB Converter Manual

SDI-12 Commander 2.0 serial terminal program for Windows 32/64
