UART to SDI-12 Interface Master Module TBS01A

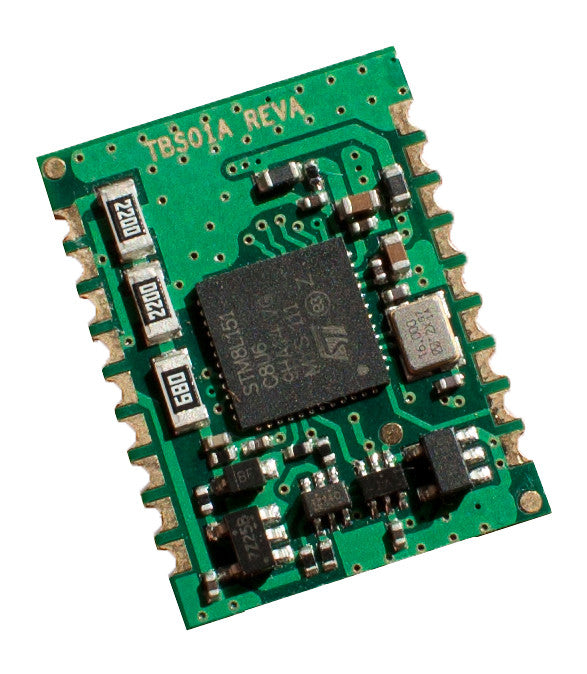

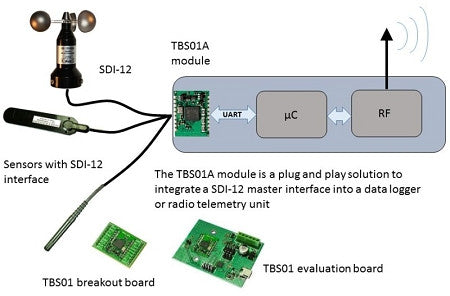

The TBS01A SDI-12 to UART module is a bi-directional interface for the conversion of commands and data into SDI-12 format and vice versa. The module is Plug and Play, targeting cost sensitive data logging applications. It offers low current consumption, small footprint and easy integration into products which require a SDI-12 interface.
The user does not need to invest any time for the implementation of the SDI-12 protocol and interface hardware, as this is an integral part of the SDI-12 UART interface module.
The TB01A contains all the necessary components of a complete SDI-12 interface. It includes SDI-12 front-end, controller, crystal and passive components.
TBS01A has been engineered specifically for applications where cost, performance, time to market and ease of integration are prime considerations. The TBS01A is a functionally and mechanically compatible replacement of the TBS01 module.
SDI-12 Commander 2.0 serial terminal program for Windows 32/64
The user does not need to invest any time for the implementation of the SDI-12 protocol and interface hardware, as this is an integral part of the SDI-12 UART interface module.
The TB01A contains all the necessary components of a complete SDI-12 interface. It includes SDI-12 front-end, controller, crystal and passive components.
TBS01A has been engineered specifically for applications where cost, performance, time to market and ease of integration are prime considerations. The TBS01A is a functionally and mechanically compatible replacement of the TBS01 module.
Specifications
- SDI-12 to UART Interface
- SDI-12 Standard V1.3
- Selectable data rate:
- 4800, 9600, 19200, 38400 Baud
- Plug and Play
- Power Down Mode
- 3.3V UART interface
- 3.3V, 5V supply voltage
- 23 mm x 18 mm x 2.3 mm SMT footprint
- 3 mm module thickness
- Operating Temperature Range: - 40°C … + 85°C
Target Applications
- SDI-12 Data Logger
- SDI-12 to RS232 Interface
- SDI-12 to USB Interface
Documentation and Downloads
SDI-12 UART Interface Module DatasheetSDI-12 Commander 2.0 serial terminal program for Windows 32/64
